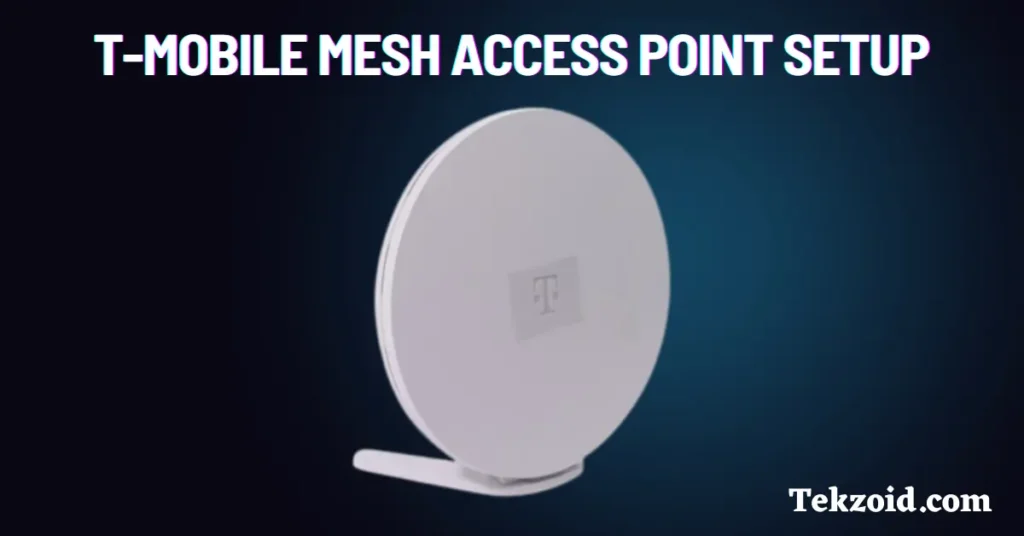

You can set up a T-Mobile mesh access point in about 10 minutes to extend WiFi coverage and fix weak signal areas in your home.
I wrote this after seeing a lot of people complain about weak WiFi in certain rooms, even after getting T-Mobile Home Internet. I checked the setup process from T-Mobile and combined it with real user fixes that actually work.
If your WiFi drops in corners, upstairs, or far rooms, this guide will help you fix it.
Table of Contents
Who this is for
This is for you if:
- You already use T-Mobile Home Internet
- You have weak WiFi spots in your house
- You want better coverage without changing your plan
If your main issue is slow internet speed from the tower, mesh won’t fix that. It only improves coverage inside your home.
What comes in the box
You’ll usually get:
- T-Mobile Mesh Access Point
- Power adapter
- Ethernet cable
- Quick start guide
Before setup, keep the mesh unit close to your main gateway.
Step 1: Check your gateway
Before adding the mesh:
- Your gateway must be powered on
- It should already be connected to the internet
- Your WiFi should be working
If the gateway is offline, the mesh will not pair.
Step 2: Power on the mesh
- Plug the mesh into a wall outlet near the gateway
- Wait for the LED indicator
You’ll see:
- Solid white at first
- Then blinking white
Blinking white means it’s ready to connect.
Step 3: Pair the mesh
- Use the Ethernet cable from the box
- Connect mesh to the gateway
- Watch the LED
You should see:
- Blinking green
- Then solid green
Solid green means pairing is successful.
After that, unplug the Ethernet cable.
Step 4: Place the mesh correctly
Placement matters more than people think.
Move the mesh:
- To the area with weak signal
- Between the gateway and that area
- Into an open space
Avoid placing it:
- Behind thick walls
- Near metal objects
- Next to TVs or appliances
Check the LED:
- Green means good placement
- Yellow or red means move it closer
Take a few minutes to test positions. It directly affects your WiFi quality.
Step 5: Connect your devices
You don’t need to create a new network.
- It uses the same WiFi name
- Same password
Your devices will connect automatically.
You should now see a stronger signal and better stability.
Coverage and performance
A single mesh unit can extend coverage up to around 2,200 square feet.
It also helps:
- Reduce dead zones
- Improve the connection in the far rooms
- Handle more devices at once
But remember, it does not increase your internet speed from T-Mobile’s network. It only improves distribution inside your home.
Manage using the app
You can use the T-Life app to:
- Check signal strength
- Monitor connected devices
- Adjust WiFi settings
This helps you fine-tune your setup.
Common mistakes to avoid
- Placing the mesh too far from the gateway
- Keeping it behind walls or furniture
- Ignoring the LED signal indicators
- Expecting speed improvement instead of coverage improvement
Most issues come from bad placement.
Real setup experience
From what I’ve seen, pairing is quick and works smoothly.
The biggest difference comes after placement:
- Good placement fixes dead zones
- Poor placement gives little improvement
Spend time finding the right spot. That’s where the real gain is.
Video Tutorial:
My take
If your problem is weak WiFi in parts of your house, a mesh access point is a simple fix.
If your problem is slow internet overall, this won’t solve it.
Understand the difference before buying.
FAQs
Does a mesh access point increase internet speed?
No, it improves WiFi coverage, not your actual internet speed.
Do I need to create a new WiFi network?
No, it uses the same network name and password.
How do I know if the placement is correct?
Check the LED. Solid green means ideal placement.
